Detect a human
Set an intrusion zone and active hours. The camera analyses the scene and triggers the selected human rule, reducing unwanted alerts from animals and general motion.
STANKLIN · WI-FI CCTV

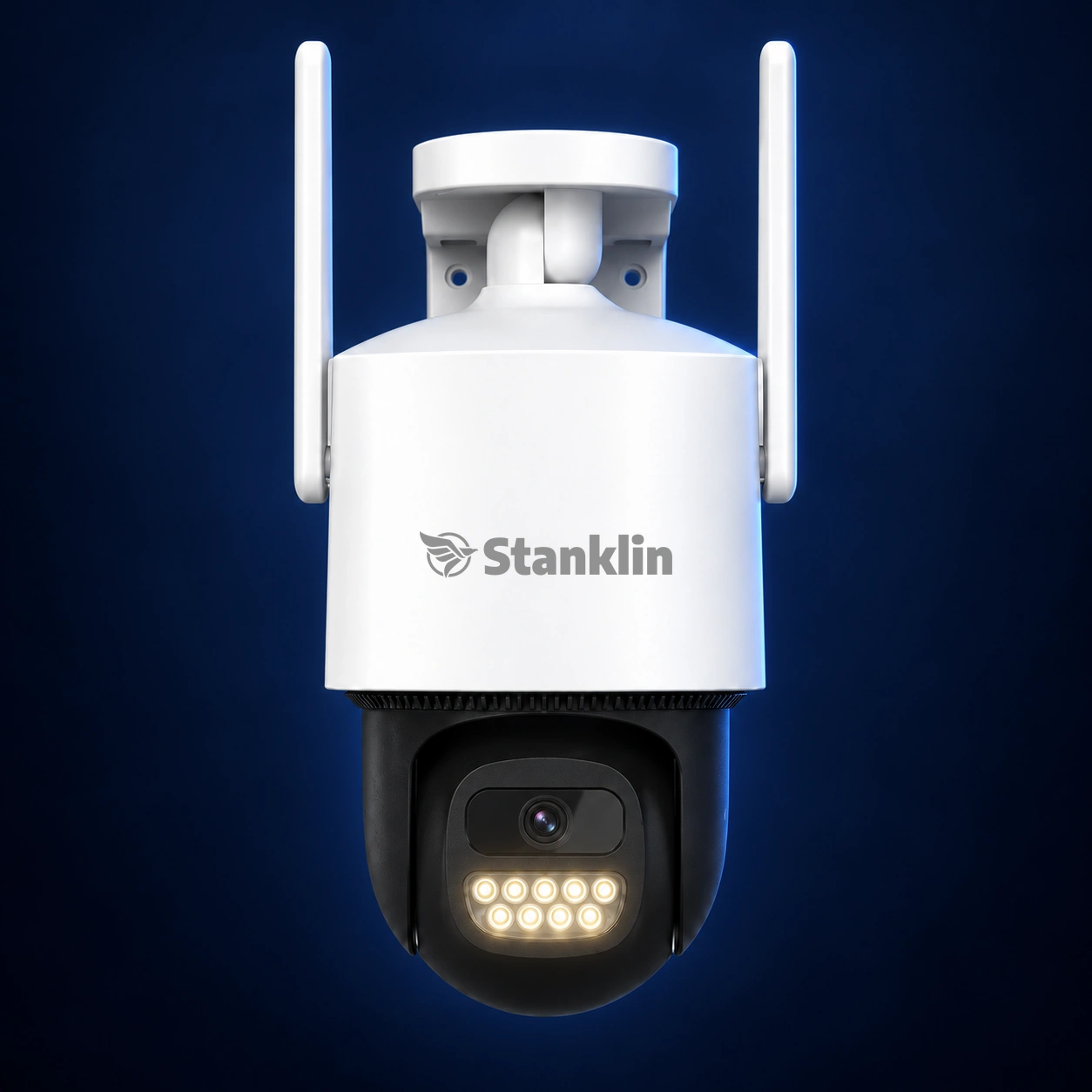

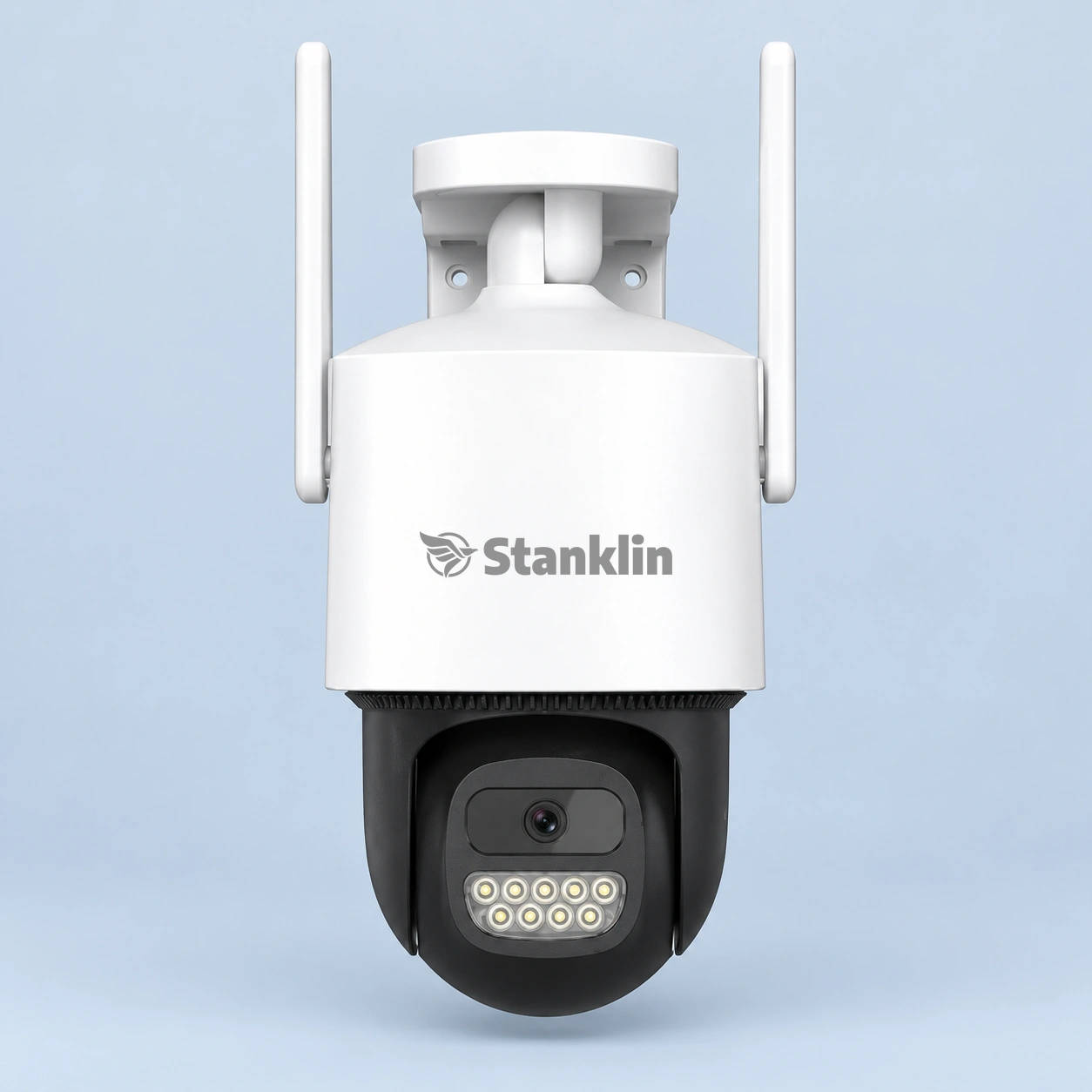

Outdoor Wi-Fi Pan & Tilt Camera
Watch entrances and outdoor spaces with pan-and-tilt coverage, colour and infrared night vision, and two-way audio.
Wi-Fi + LANPan & tiltTwo-way audioMicroSD storage
Explore specifications ↓Outdoor Wi-Fi security with full coverage
Pan, tilt, and zoom digitally to follow activity across driveways, yards, and entrances—day or night, in any season.
2K-class video
Color night vision
IP66 weatherproof
Smart motion alerts
Two-way talk
Get the whole picture with 360° coverage
Horizontal and vertical rotation helps cover wide areas and reduce blind spots. Mount on a wall or ceiling with the included bracket, then aim the lens where you need it most.
With an IP66-rated housing, the camera is built for outdoor temperature swings across seasons.
Pan-tilt positioning
IP66 outdoor rated
2K resolution recording
A high-resolution sensor delivers sharp, detailed video—roughly twice the clarity of 1080p—so faces, plates, and packages are easier to review.
Up to 2304 × 1296
Color night vision
Dual-light night vision keeps color detail when ambient light is available. In very low light, infrared night vision takes over for around-the-clock coverage.
Full-color night vision
Infrared night vision
Fewer notifications you do not need
Smart motion detection helps focus alerts on meaningful activity around your property, so your phone is not buzzing for every leaf or shadow.
Person-focused alerts
Advanced motion detection
Warning lights for visible deterrence
Motion-activated white lighting can draw attention to activity after dark. Use it alongside your recording schedule to make the camera obvious to visitors and intruders alike.
Dual-light deterrence
Two-way talk
Built-in microphone and speaker let you greet delivery drivers, warn trespassers, or check in with family from the Stanklin app.
Two-way audio
Private local storage
Record to a microSD card on the camera (up to 128 GB) so footage stays on your device—not on a subscription cloud.
TF / microSD storage
No monthly fees
Intelligent protection. A timely response.
Active Ai
Deterrent System
Respond to a person entering your protected zone. Human detection helps distinguish people from animals, moving trees and passing vehicles, so your alarm responds to the activity that matters.
System feature overview: AI events, NVR integration and external alarm outputs depend on the selected camera model and connected equipment. Check this model’s specifications when planning your system.
● EVENT FRONT ENTRANCE · 22:41:08
▧ INTRUSION ALERT ZONE
STANKLIN · MOBILE ALERTPerson in protected zone
22:41:08 · Human detection
External siren triggered · Event recorded
Record the moment
The camera sends the event to your NVR. Timestamped recordings and event snapshots help you find the incident and review what happened before and after it.
Sound the warning
A configured human intrusion can activate a connected external siren or spoken warning through a supported camera output, helping discourage an intruder from proceeding.
Receive an alert
Get an intrusion notification on your mobile phone. Open the connected app to check the camera view and assess the event, even when you are away.
Every channel.
Connected intelligence.
All Stanklin NVR channels support AI events from compatible connected cameras. Detection takes place in each camera; the NVR brings the events and recordings together. Combine human detection, timestamped evidence, an audible warning and a mobile alert for stronger active deterrence.
External siren operation requires a compatible camera output and connected siren or speaker. Mobile alerts require app setup and network connectivity. Configure detection zones, schedules and alarm actions for your installation. Detection accuracy varies with the scene and installation.
Wi-Fi or wired data
Connect over 2.4 GHz Wi-Fi for flexible placement, or use the RJ45 port with Ethernet for a stable link to your network or recorder. Power is supplied separately (DC 12V)—Ethernet does not provide PoE on this model.
2.4 GHz Wi-Fi
10/100 Mbps Ethernet
THE STANKLIN ADVANTAGE
Key Advantages
- Color night vision
- Built-in two-way talk
- Wi-Fi and LAN connection
- Up to 128GB local recording
- IP66 outdoor protection
More than outdoor recording. Stay aware, speak to visitors and keep your property in view.
Product specifications
| Model | ST-204-9PT |
|---|---|
| Max. resolution | 3MP (2304 × 1296) |
| Frame rate | 12 FPS |
| Image sensor | Sony STARVIS CMOS; 1/2.9-inch sensor |
| Min. illumination | Color 0.01 Lux; B/W 0.001 Lux |
| Lens | 4 mm, M12 |
| Shutter speed | 1/50 (1/60) s to 1/10,000 s |
| Day & night | Full-color and infrared night vision |
| Vision distance | Infrared 30 m; visible 20 m |
| Video coding | H.265AI |
| Output bit rate | 0.1–8 Mbps |
| Audio coding | G.711a |
| Wi-Fi | IEEE 802.11b/g/n, 2.4 GHz |
|---|---|
| Wired network | RJ45 × 1 (10/100 Mbps adaptive) |
| Storage | TF card (max. 128 GB) |
| Microphone | Built-in |
| Speaker | Built-in |
| Voice talk | Two-way |
| Power supply | DC 12V ±10% |
| Waterproof | IP66 |
| Operating temperature | −10°C to +60°C |
| Operating humidity | 10%–95% RH |
| Dimensions | About 184 × 292 × 152 mm |
| Weight | About 700 g |
| Installation | Wall-mounted, top-mounted |
Housing appearance may change from time to time, depending on the product development. Learn about Ai accuracy
