Detect a human
Set an intrusion zone and active hours. The camera analyses the scene and triggers the selected human rule, reducing unwanted alerts from animals and general motion.
STANKLIN PANORAMIC CAMERA
See the whole
picture.
Two lenses. One expansive view. Keep your driveway, entrance and garden in sight with the Stanklin 8MP dual-lens panoramic camera.
ST-4428-PAN2D-WL B · 4MP + 4MP
Find your camera View specifications
180°
Panoramic coverage
4 + 4MP
Two lenses · 8MP combined
Duallight
Infrared + white light
Wi-Fi
Plus LAN for NVR connection
180° panoramic view
More of your space.
In a single glance.
See what is happening across a wide frontage—from the car on the driveway to visitors at the entrance and activity by the side gate.
DrivewayEntranceSide gate
4MP lens4MP lens4MP + 4MP = 8MP combined

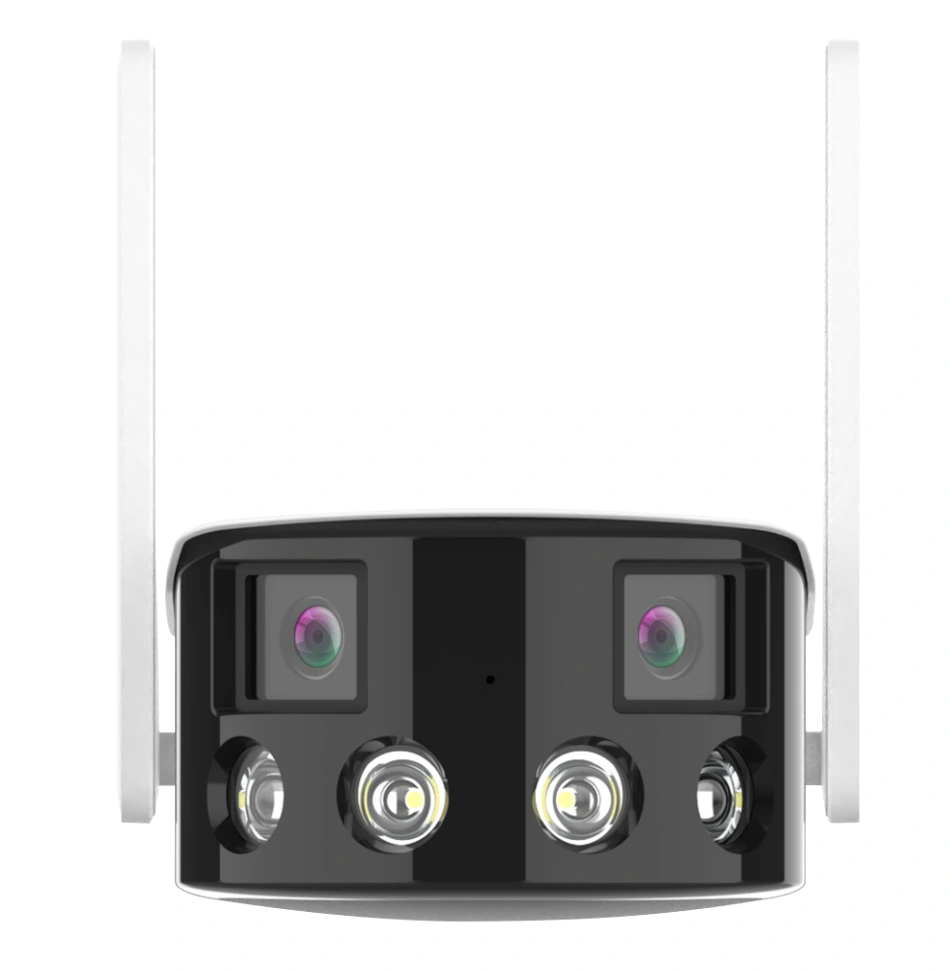

Two lenses working together
Double the perspective.
The dual-lens design brings two 4MP views together for broad panoramic coverage. That means an 8MP combined view, with each lens capturing its own part of the scene.
Ideal for wide entrances, driveways and open areas where you want to see more at once.
IR + white light
Two ways to see after dark.
Infrared illumination provides a monochrome night view. White light illuminates the scene to reveal color details when you need them.
INFRARED · MONOCHROMEWHITE LIGHT · COLORIntelligent protection. A timely response.
Active Ai
Deterrent System
Respond to a person entering your protected zone. Human detection helps distinguish people from animals, moving trees and passing vehicles, so your alarm responds to the activity that matters.
System feature overview: AI events, NVR integration and external alarm outputs depend on the selected camera model and connected equipment. Check this model’s specifications when planning your system.
● EVENT FRONT ENTRANCE · 22:41:08
▧ INTRUSION ALERT ZONE
STANKLIN · MOBILE ALERTPerson in protected zone
22:41:08 · Human detection
External siren triggered · Event recorded
Record the moment
The camera sends the event to your NVR. Timestamped recordings and event snapshots help you find the incident and review what happened before and after it.
Sound the warning
A configured human intrusion can activate a connected external siren or spoken warning through a supported camera output, helping discourage an intruder from proceeding.
Receive an alert
Get an intrusion notification on your mobile phone. Open the connected app to check the camera view and assess the event, even when you are away.
Every channel.
Connected intelligence.
All Stanklin NVR channels support AI events from compatible connected cameras. Detection takes place in each camera; the NVR brings the events and recordings together. Combine human detection, timestamped evidence, an audible warning and a mobile alert for stronger active deterrence.
External siren operation requires a compatible camera output and connected siren or speaker. Mobile alerts require app setup and network connectivity. Configure detection zones, schedules and alarm actions for your installation. Detection accuracy varies with the scene and installation.

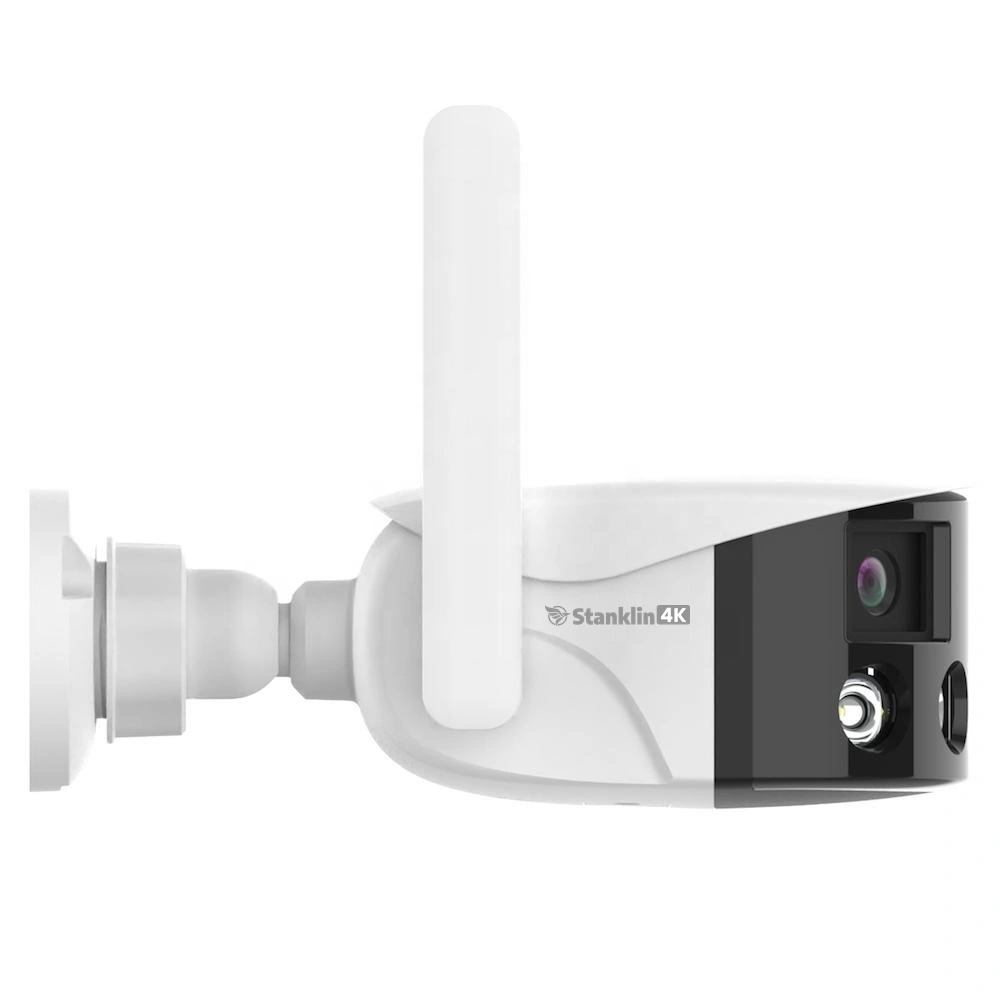

Wi-Fi + LAN
Connect your way.
Use Wi-Fi for a wireless network connection, or connect the camera's LAN port to your network for use with a compatible NVR.
A network cable provides a wired data connection. The camera still needs a suitable power supply when using Wi-Fi.
Explore Stanklin recorders
Wi-FiWireless router
LAN cableRouter / network switch
Your network → Compatible NVR
BUILT-IN SPEAKERSound at the camera
Make yourself heard.
Two-way audio lets you listen and speak through the camera using the supported app. The built-in speaker makes your voice audible at the camera.
See the speaker grille in the underside view, alongside the camera's adjustable mounting bracket.
THE STANKLIN ADVANTAGE
Key Advantages
- 180° panoramic view
- Dual 4MP lenses
- Color night vision
- Built-in two-way talk
- Wi-Fi and LAN connection
- MicroSD and NVR recording
More of your property in one view. Wider awareness and a voice at the camera.
| Model | ST-4428-PAN2D-WL B |
|---|---|
| Resolution | 3664 × 1080 |
| Frame rate | 12 FPS |
| Lens system | Dual lens |
| Coverage | 180° panoramic view |
| Night illumination | Infrared and white light |
| Night view | IR monochrome / white-light color |
| Wireless network | Wi-Fi |
| Wired network | LAN port for compatible NVR connectivity |
| Audio | Two-way audio with built-in speaker |
| Image sensor | Sony IMX335 STARVIS CMOS (each sensor) |
| Video compression | H.265 |
| Infrared range | Up to 20 m; performance depends on the scene and conditions |
| Detection | AI motion detection |
| Storage options | MicroSD card, compatible NVR and cloud storage |
| Installation | Outdoor use; weather-resistant housing |
Housing appearance may change from time to time, depending on the product development. Learn about Ai accuracy
