See more in 4K. Clear day and night video, face, human and vehicle detection, and two-way communication help you watch over entrances, homes and offices. Designed for indoor use.
Professional-grade down to its core
Built for dependable indoor security. From its compact enclosure to the Sony IMX415 STARVIS sensor and image processing, this camera delivers sharp 4K detail across doorways, homes and offices.
SONY SENSOR INSIDE
Clarity starts at the sensor.
Powered by the Sony IMX415 STARVIS sensor for sharp 4K detail, true-to-life colour and exceptional low-light sensitivity.
SONY and STARVIS are trademarks of Sony Group Corporation or its affiliates.
Your safety deserves the best
Every important moment can be captured, with around-the-clock coverage that helps you feel at ease inside your home or office day and night.
Ultra HD detail on faces, packages, and doorways
See more detail at night with Color Night Vision.
Compact dome housing for indoor entrances and rooms
Warning lights that switch on when motion is real
Alerts for a person, a vehicle, or a face
Listen and speak through the camera
Record your own voice for the alarm
Supports surveillance-grade hard drives for reliable recording storage
Search recorded video by face, human and vehicle events
Wired link so the camera keeps recording if Wi-Fi drops
Sony IMX415 STARVIS sensor Top-tier long-term colour stability
Built-in amplifier powers an external loudspeaker
Detail you can actually use
4K resolution delivers sharper images and finer detail, so you can make practical use of what you see. Zoom in during playback to examine a face, a package or activity at the doorway with greater clarity.
4K resolution
Night vision that adapts
Colour, infrared and Smart Alert modes keep you informed after dark. When someone arrives in Smart Alert mode, the camera turns on its light and switches to colour so you can see who is there.
Colour night vision
Infrared night vision
Smart Alert mode

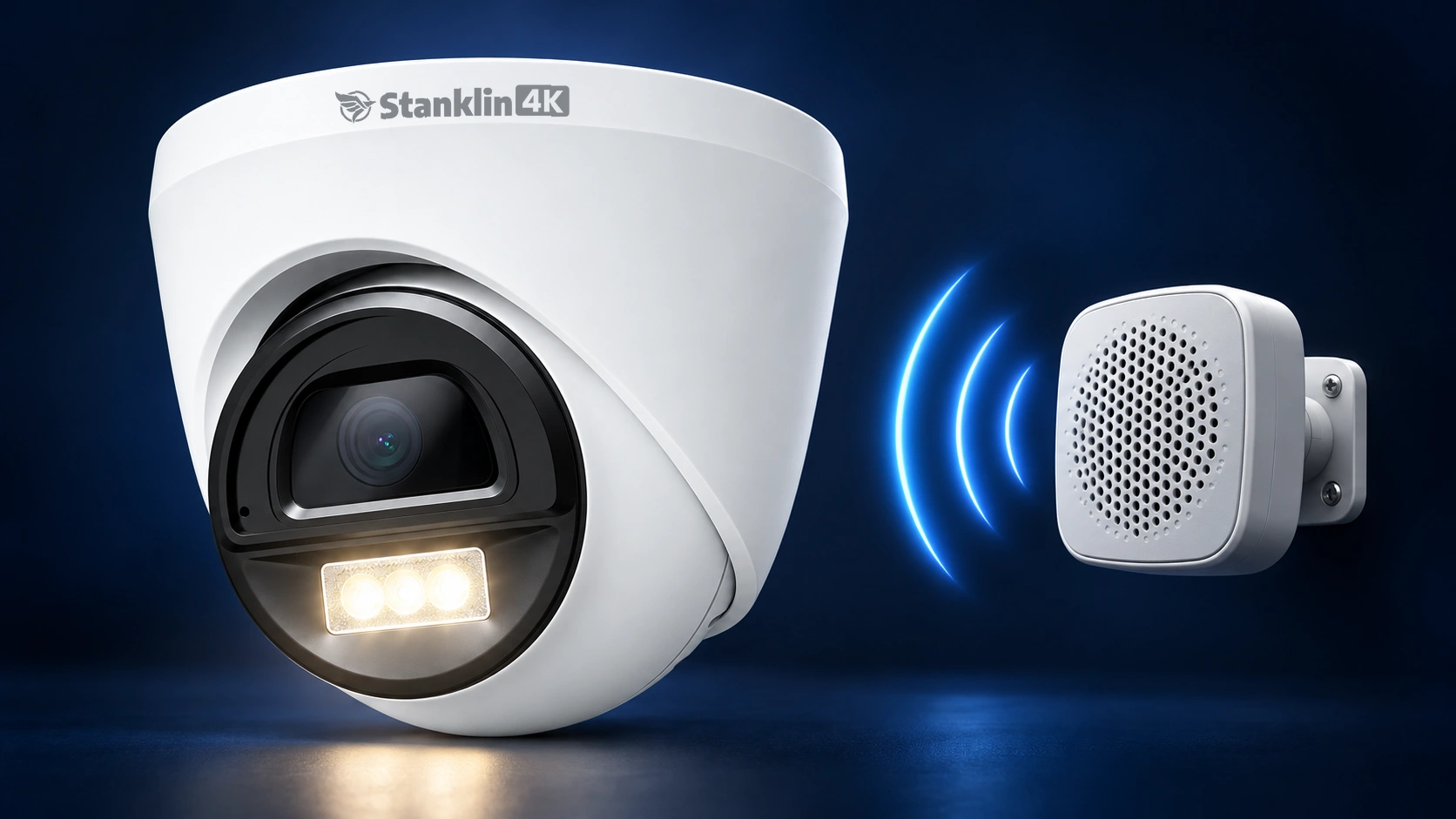

A warning before trouble
When a person or vehicle crosses a zone you set, warning lights draw attention. The built-in amplifier drives a connected external loudspeaker for a siren or your recorded voice alarm.
Active warning lights
Siren output with built-in amplifier
Record your own voice alarm
Loud two-way talking
Listen through the built-in microphone and speak through the app. The built-in amplifier drives a connected external loudspeaker, so your message can be heard at the entrance. Play a quick response or record your own voice alarm.
Two-way talk
Speaker output
Intrusion / Zone Alert
Mark the area you want to protect. Trigger an alarm when a person enters the defined boundary.
Notices you can act on
See all your alerts at a glance on your phone. Get notified in the app when a face, person or vehicle is detected, then open the Alarm Center to quickly review what happened—without searching through hours of video.
Human detectionVehicle detectionFace detection

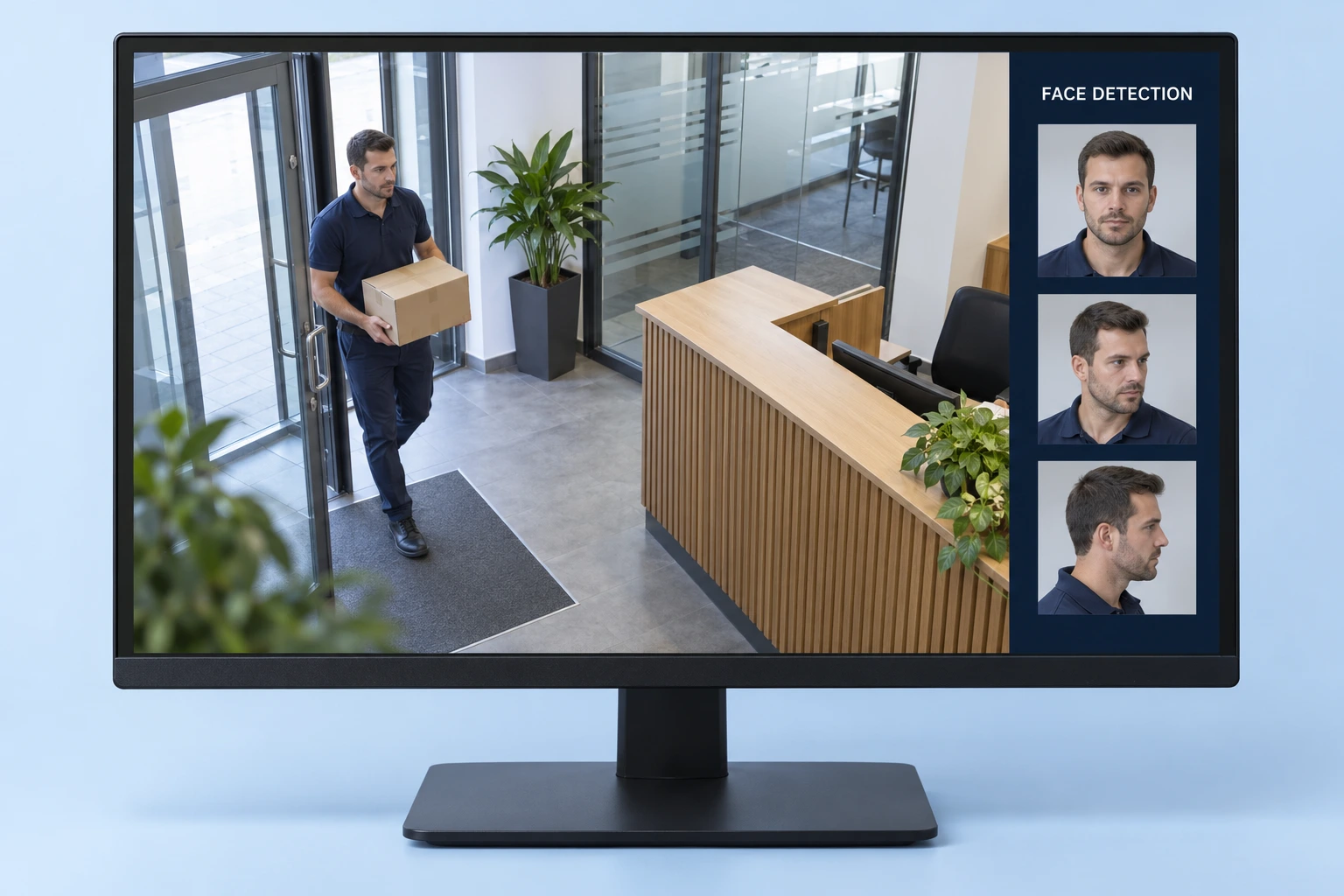

Face Pop-up
Who has arrived? See at a glance.
See face snapshots beside the live view as someone enters your home or office. Different moments help you see the visitor at a glance. Select a thumbnail to review the recording.
Intelligent protection. A timely response.
Active Ai Deterrent System
Respond to a person entering your protected zone. Human detection helps distinguish people from animals, moving trees and passing vehicles, so your alarm responds to the activity that matters.
● EVENT HOME FOYER · 22:41:08
▧ INTRUSION ALERT ZONE
STANKLIN · MOBILE ALERTPerson in protected zone
22:41:08 · Human detection External siren triggered · Event recorded
Illustrative detection view and notification. Example timestamp shown.
● EVENT VILLA HALLWAY · 22:41:08
▧ INTRUSION ALERT ZONE
STANKLIN · MOBILE ALERTPerson in protected zone
22:41:08 · Human detection External siren triggered · Event recorded
Illustrative detection view and notification. Example timestamp shown.
● EVENT APARTMENT LOBBY · 22:41:08
▧ INTRUSION ALERT ZONE
STANKLIN · MOBILE ALERTPerson in protected zone
22:41:08 · Human detection External siren triggered · Event recorded
Illustrative detection view and notification. Example timestamp shown.
● EVENT OFFICE RECEPTION · 22:41:08
▧ INTRUSION ALERT ZONE
STANKLIN · MOBILE ALERTPerson in protected zone
22:41:08 · Human detection External siren triggered · Event recorded
Illustrative detection view and notification. Example timestamp shown.
● EVENT HOME UTILITY ROOM · 22:41:08
▧ INTRUSION ALERT ZONE
STANKLIN · MOBILE ALERTPerson in protected zone
22:41:08 · Human detection External siren triggered · Event recorded
Illustrative detection view and notification. Example timestamp shown.
01
Detect a human
Set an intrusion zone and active hours. The camera analyses the scene and triggers the selected human rule, reducing unwanted alerts from animals and general motion.
02
Record the moment
The camera sends the event to your NVR. Timestamped recordings and event snapshots help you find the incident and review what happened before and after it.
03
Sound the warning
A configured human intrusion can activate a connected external siren or spoken warning through a supported camera output, helping discourage an intruder from proceeding.
04
Receive an alert
Get an intrusion notification on your mobile phone. Open the connected app to check the camera view and assess the event, even when you are away.
Every channel. Connected intelligence.
All Stanklin NVR channels support AI events from compatible connected cameras. Detection takes place in each camera; the NVR brings the events and recordings together. Combine human detection, timestamped evidence, an audible warning and a mobile alert for stronger active deterrence.
External siren operation requires a compatible camera output and connected siren or speaker. Mobile alerts require app setup and network connectivity. Configure detection zones, schedules and alarm actions for your installation. Detection accuracy varies with the scene and installation.
Wired reliability
Connect over Ethernet to your local network and a compatible NVR for continuous recording to an installed hard drive. Power the camera with an 802.3af PoE switch or injector, or a 12V DC supply. Local recording can continue without internet while the camera, network, and recorder remain powered.
Stable wired connection
24/7 continuous recording
Records without internet
No monthly fee
Live view, playback, and detection stay included. Nothing renews each month.
Drive inside the recorder
Recordings stay on the hard drive in the recorder.
THE STANKLIN ADVANTAGE
Key Advantages
Sony STARVIS sensor
Compact semi-metal body
Color night vision
AI face detection for face-filtered playback
Live face pop-up: see who is at the gate
Ai human detection triggers an alarm in the marked area
Alarm sound in your own voice or the default police siren
Connects to an external speaker for louder warnings than cameras with low-volume internal speakers
Not just indoor recording. An active Ai deterrence solution with 4K clarity.
Technical Details
Product specifications
Model
S804-WD2-ND
Resolution
8MP / 4K (3840 × 2160)
Frame rate
1 to 25 FPS
Image sensor
Sony IMX415 STARVIS™ CMOS
Lens
4 mm, 4K, f/1.0 barrel lens
Video compression
H.265 / H.264
Image enhancement
2D/3D noise reduction; digital wide dynamic range
Backlight compensation
BLC / HCL / DWDR
Smart detection
Face, human and vehicle detection
IR range
60 m
Warm light range
60 m
Audio
Built-in mic, built-in amplifier output, RC connector to connect an external loudspeaker
Alarm out
RC pin to connect a speaker or siren
RAM
512 MB
ROM
256 GB
Power source
12 V DC / PoE (802.3af)
Casing
Engineered fiber / semi-metal indoor dome housing
Dimensions (H × W)
90 × 70 mm
Intended use
Indoor use
Fade-proof imaging life
10 years (Stanklin specification)
Housing appearance may change from time to time, depending on the product development. Learn about Ai accuracy
In the Box
What's Included?
IP SECURITY CAMERAS804-WD2-ND

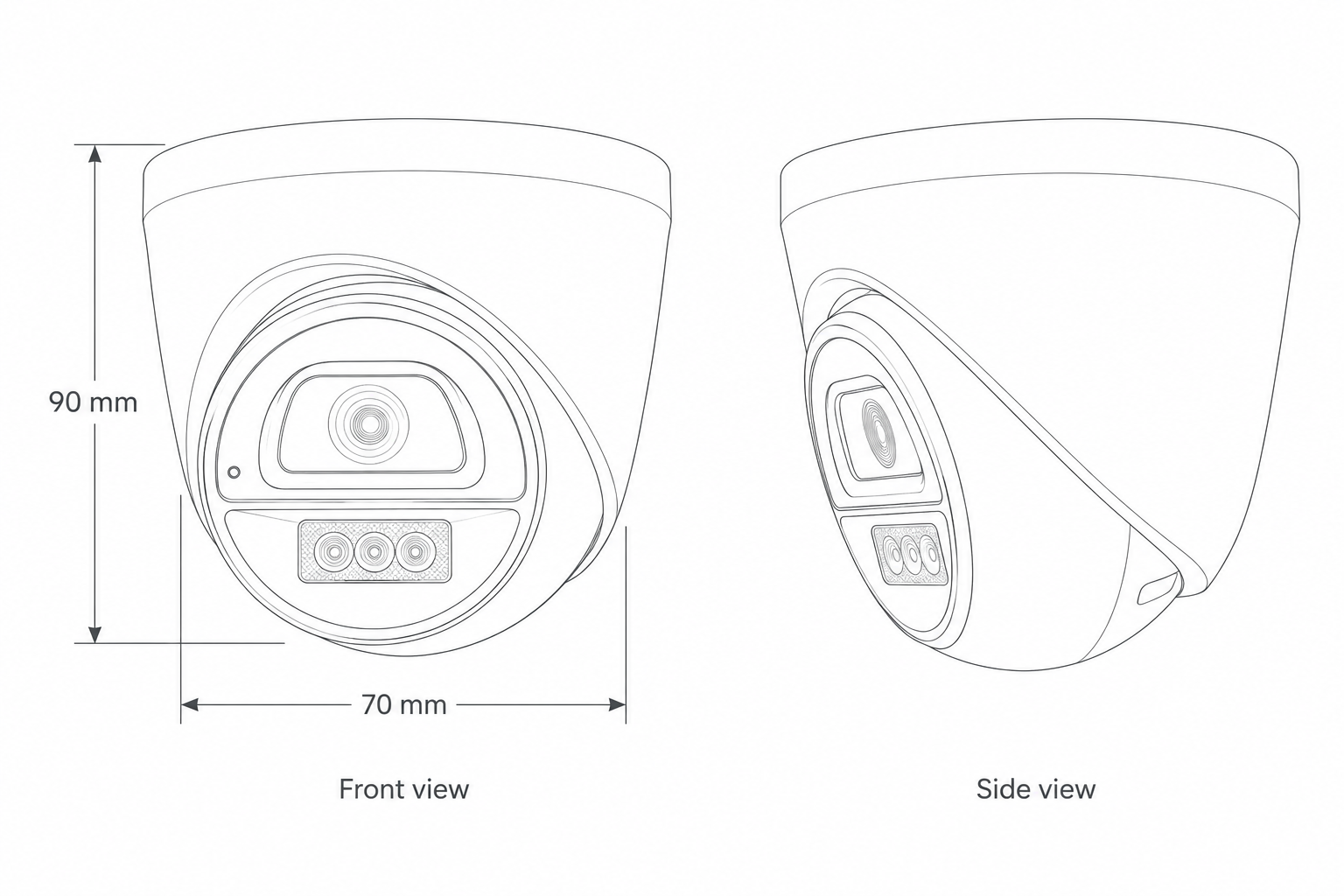

Front and side views · Drawing not to scale
Dimensions (H × W): 90 × 70 mm

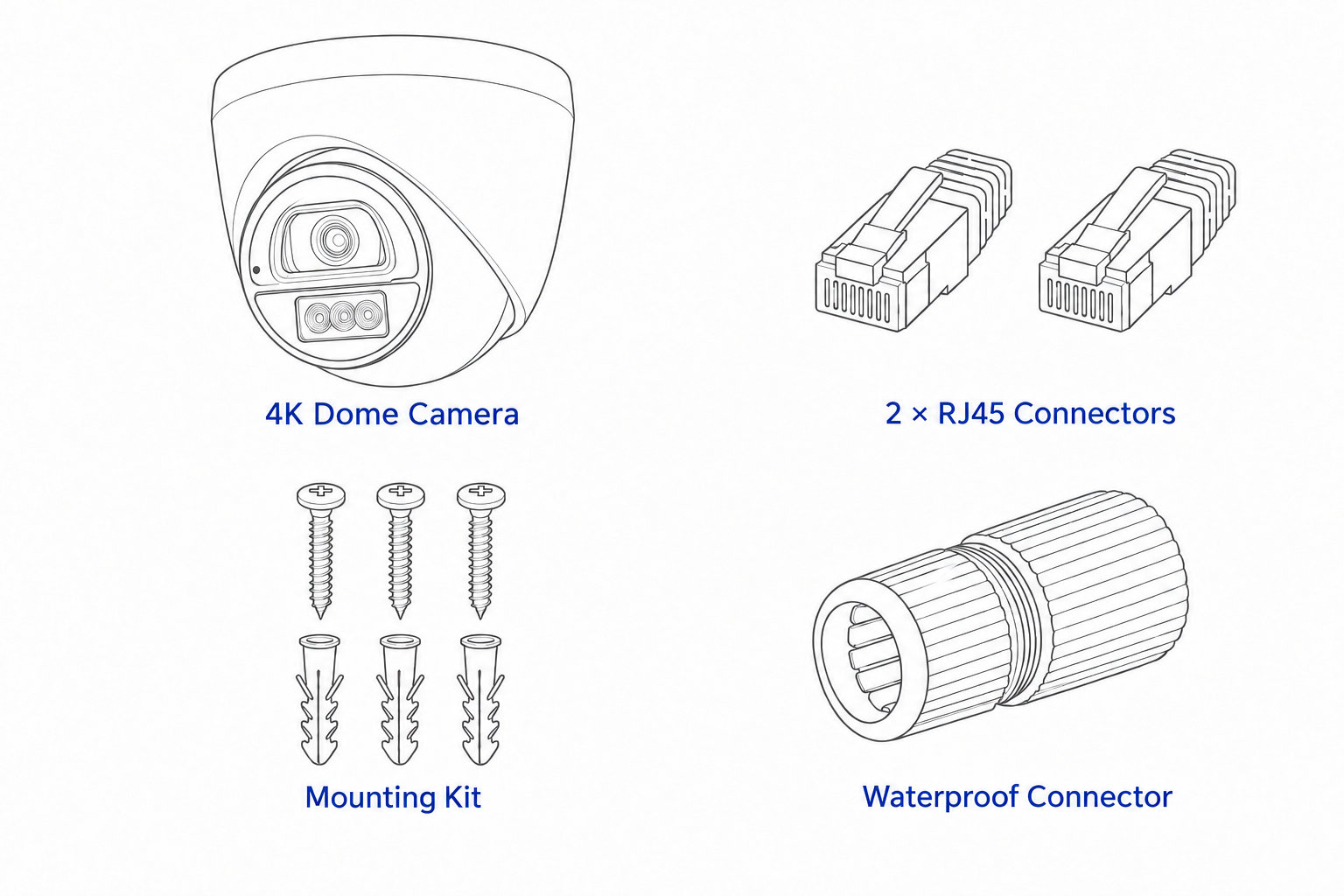

Package Contents:
Camera, two RJ45 connectors, three screws, three wall plugs and a waterproof connector.
Designed for indoor doorways, homes and offices.
Face, human and vehicle detection runs inside the camera; event snapshots are sent to the NVR.
Two-way communication uses an external speaker connected to the speaker output.
Recordings are stored on the hard drive inside a compatible recorder.
Remote app access requires an internet connection and setup. Recorder and hard drive are separate system components.
Sony IMX4154K · 8MP output
Infrared night vision
Siren output with built-in amplifier
24/7 continuous recording
Records without internet
No monthly fee
