Video monitoring for oil refineries, gas processing facilities and demanding industrial environments. Explore a fixed IP camera system with Sony STARVIS imaging and industrial connection options.
Explore the range ↓Monitor process areas, equipment and access routes with a camera configuration selected for your site.

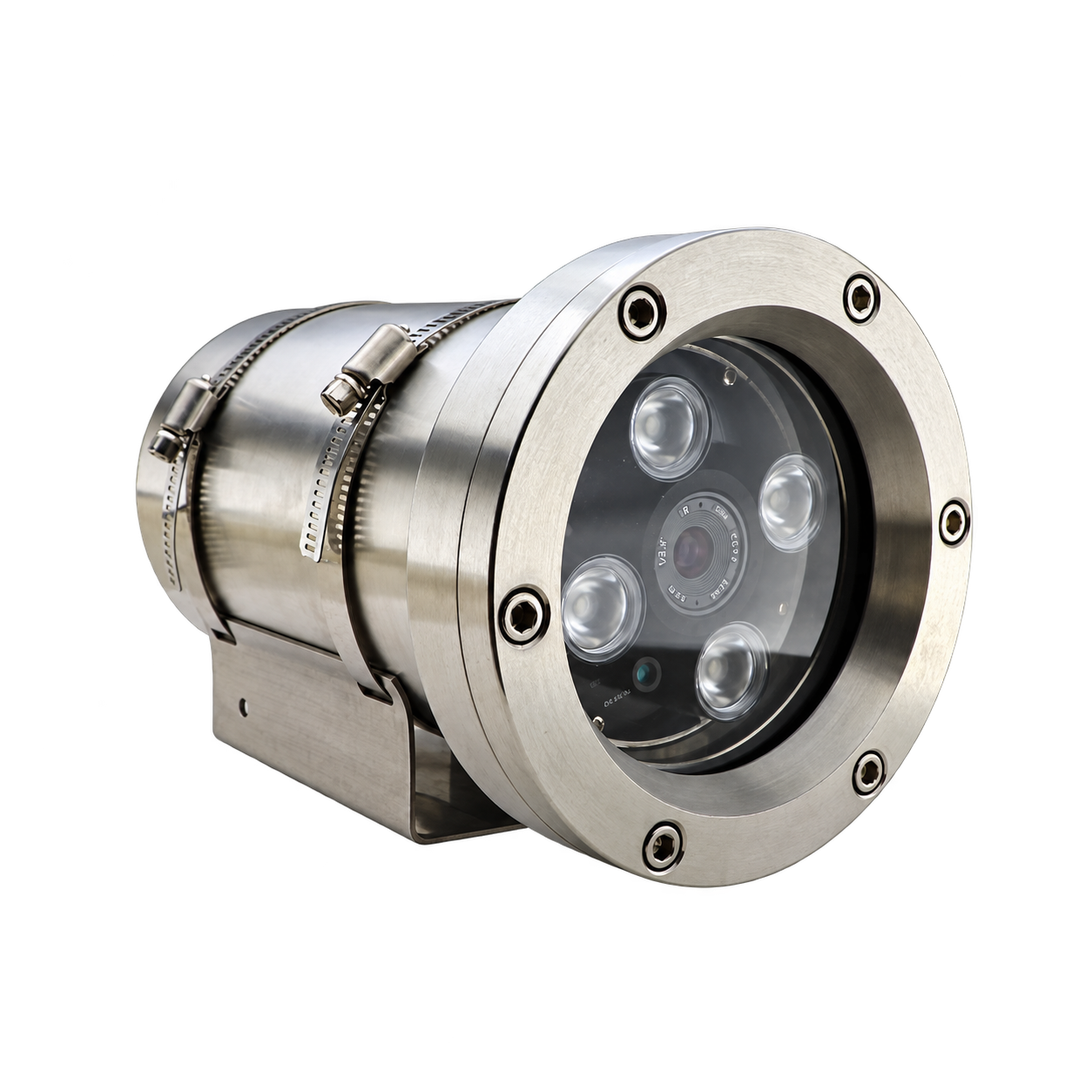

Stanklin Explosion-proof IP Camera
Full HD video, Sony IMX291 STARVIS imaging, 130 dB wide dynamic range and stainless-steel construction.
Full specifications, imaging features and installation options are provided below.
| Model | SGC-EX LS |
|---|---|
| Image sensor | Sony IMX291 STARVIS; 1/2.9-inch type (catalog) |
| Maximum resolution | 1920 × 1080, 16:9 |
| Lens options | 3.6 / 4 / 6 / 12 mm |
| Digital zoom | 8× |
| Wide dynamic range | 130 dB |
| Night imaging | Sony STARVIS low-light color imaging using available ambient light; no built-in IR or white-light illumination |
| Image processing | 3D noise filtering, backlight compensation, automatic gain control and electronic image stabilization |
| Light sensitivity | Color: 0.03 lux at 33 ms / 0.008 lux at 250 ms; mono: 0.004 lux at 33 ms / 0.001 lux at 250 ms. Catalog test conditions apply. |
| Shutter / SNR | 1/1–1/10,000 s; >50 dB |
| Video encoding | H.264 High, Main and Base profiles; MJPEG |
|---|---|
| Video streams | Up to 2 simultaneous streams |
| Frame rate | Up to 60 fps, depending on encoding, resolution and stream configuration |
| Ethernet | 100/1000 Base-T Ethernet; Cat5e or better |
| Integration | Third-party NVR compatibility; catalog lists ONVIF profiles S, G and Q |
| Transmission options | Optional SFP/FSFP modules for fiber, Ethernet-over-coax or UTP |
| Access | Password protection; web browser viewing and setup |
| Protocols | TCP/IP, UDP/IP, RTP, RTSP, DHCP, DNS, NTP, IPv4/IPv6, HTTP/HTTPS, SNMP and 802.1X (catalog-listed) |
| Construction | Electropolished 316L stainless steel (technical specification) |
|---|---|
| Viewing window | 12 mm tempered glass |
| Sun shroud | 316L stainless steel |
| Catalog weight | 6.0 kg; confirm supplied configuration |
| Cable entries | Dual entries; 0.75-inch NPT threaded openings |
| Mount adjustment | Manual 360° pan and 180° tilt with optional accessory mount |
| Power options | 12 VDC / 48 VDC / 100–240 VAC, configuration dependent |
| Temperature | Catalog operating range: −60°C to +60°C; cold-start and heater conditions depend on configuration |
| Alarm inputs | 4 inputs, optional |
|---|---|
| Environmental options | Heater / window defroster and sun shroud |
| Analytics software | Optional; not included in the base package |
| Motion analytics | Adaptive motion, directional motion, loitering and stopped-vehicle detection |
| Scene analytics | Camera sabotage, object counting and object removal |
| Local storage | Optional SDXC storage; capacity to be confirmed for the supplied configuration |
| Maintenance | Remote soft reset; configurable on-screen displays |
Bring video coverage to oil and gas operations, from refinery process areas to storage infrastructure. A fixed IP system connects industrial monitoring with your network recording setup.
Observe equipment, service walkways and activity around process infrastructure.
Maintain an overview of pipe corridors, storage tanks and operational access points.
Plan fixed views of entrances and restricted areas alongside your wider security system.

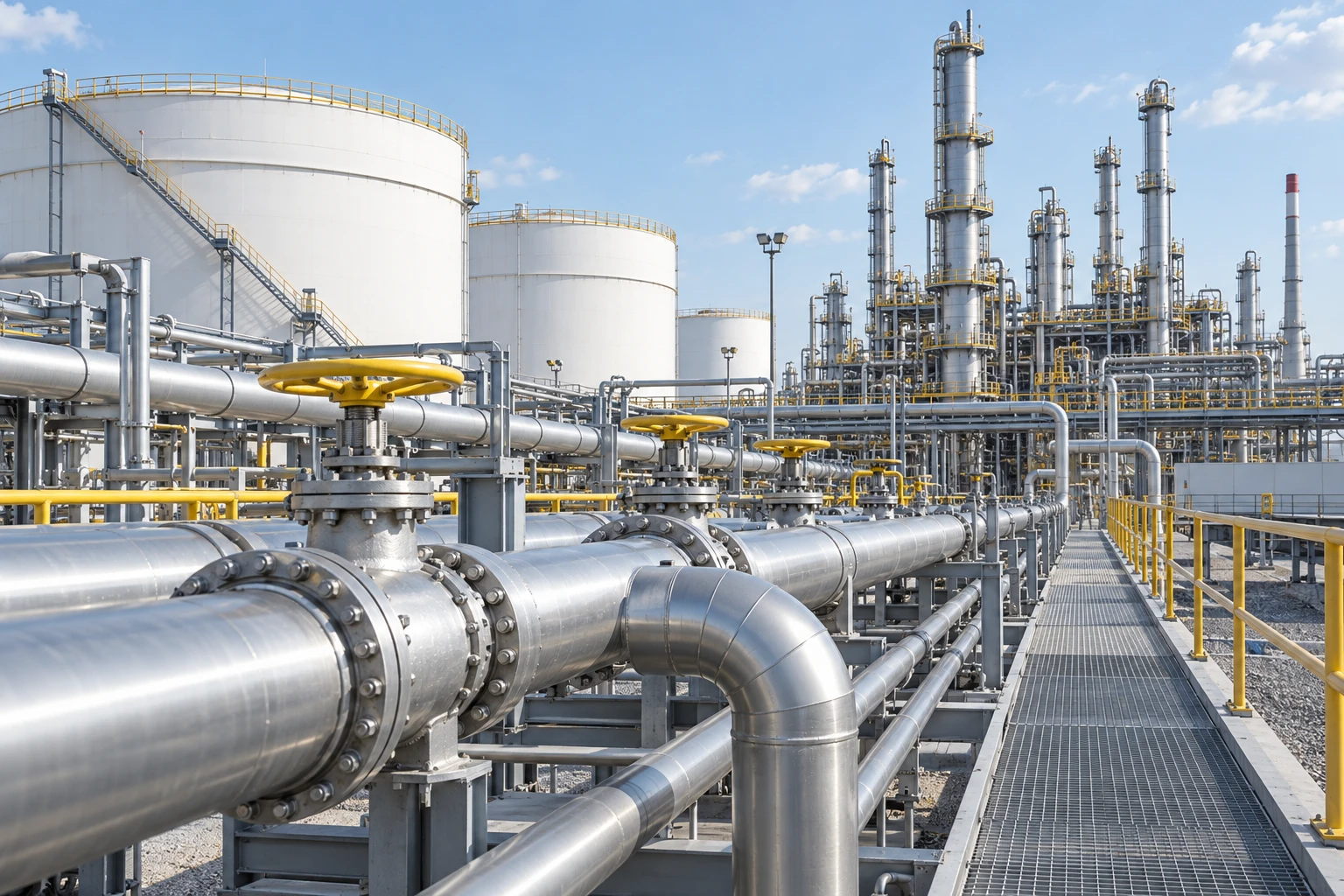

Illustrative oil and gas environment.
The catalog specifies an electropolished 316L stainless-steel housing and high-transmissivity viewing glass, with a sun shroud and heater/window-defroster provisions.
A camera can look clear during the day, yet lose detail when its internal IR illumination switches on at night. Behind a housing window, reflected IR can return to the lens and create glare, haze and ghost images.
Putting an IR camera inside a separate housing can let its own illumination reflect from the glass back into the lens. This can mask vessel fittings, bolts and pipe details. It is an internal-reflection and glare effect, sometimes described as a “prism effect”; it is not caused by glass thickness alone.
The SGC-EX LS uses a Sony IMX291 STARVIS sensor and, in the configuration specified by Stanklin, emits no IR or white light. It uses available ambient light for low-light color imaging, avoiding glare from its own illuminator behind the window.
Low light, not zero light. Color detail requires some visible ambient light. Results depend on light level, exposure, lens, glass condition and subject movement. Absolute darkness requires an appropriate external lighting solution.
Technology references: Sony STARVIS
The catalog specifies a Sony IMX291 STARVIS sensor for Full HD imaging. Wide dynamic range helps manage scenes with strong brightness differences, while day/night switching, an IR-cut filter and 3D noise filtering support changing lighting conditions.
Stanklin uses Sony image sensors across its camera range.
1920 × 1080 · 16:9
130 dB WDR · 3D noise filtering
Electronic image stabilization
IP Ethernet connectivity and third-party NVR compatibility support integration with your monitoring setup. The catalog also lists optional SFP/FSFP transmission modules for fiber, Ethernet-over-coax and UTP configurations.
H.264 / MJPEG encoding and two simultaneous streams, with stream settings matched to bandwidth and recording needs.
Password protection, multilingual menus, browser-based setup and remote soft-reset capability.
Motion zones, directional crossing, loitering, object counting/removal, stopped-vehicle and sabotage alerts are catalog-listed analytics options; software is not included in the base package.
Share your site requirements, viewing areas and network needs with our team.
Enquire about explosion-proof cameras →
